4 Axis roughing standard is a 4 axis simultaneous roughing operation. |
Key Points
|

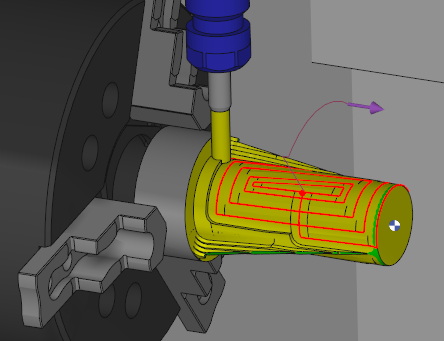

This new operation enable to rough any shape using the 4 axis simultaneously and applying standard offset toolpath. The toolpath starts out of the material in case of open machining area.
To avoid a too long calculation time, we advise you to define carefully the mini and maxi diameters of machining, in the strategy page.
This operation cannot be computed on a mesh model! |
|
Strategy Parameters
|
Dialog Area |
Parameters |
|
|
Toolpath Strategy |
Machining direction |
Optimization |
|
Radii on contour |
|
|
|
Machining Area |
Mini machining radius |
Maxi Machining radius |
|
Definition of Chip |
Engagement angle |
Respect of scallop |
|
|
XY Scallop |
Maxi thickness ( h ) |
|
Limitation of Machining |
Shift of profile |
Shift of value |
|
Starting Distance |
Ending Distance |
|
|
Calculation of Z steps |
Z Step (Ap) |
|
|
Allowances |
XY stock allowances |
Normal stock allowances |
|
Z Stock allowance |
|
|
Movement Parameters
|
Dialog Area |
Parameters |
|
|
Safety (in Z) |
Rapid plane alt. |
Safety distance |
|
Z plunge |
Mini helix rad |
Mini ramping rad |
|
Mini rad mach area |
Plunge angle |
|
|
Management of rapids |
||
|
|
||
|
Safety |
XY safety distance |
|
Technology Parameters
|
Dialog Area |
Parameters |
|
|
Cutting Conditions |
Quality |
Cutting Speed |
|
Feedrate/tooth |
Spindle direction |
|
|
Spindle speed |
Feedrate |
|
|
Sp. speed range |
||
|
Tool number |
Specific Number |
|
|
Length compensation number |
Diameter compens. Nb |
|
|
Users Fields |
Comment |
Control Device |
|
Milling Set |
|
|
Options Parameters
|
Dialog Area |
Parameters |
|
|
Behaviour on the clamps and components |
Gouge Check |
Offset XY |
|
Offset Z |
||
|
Curves Computing |
Curve tolerance |
Curve segmentation |
